Bird anti-collision screen MF002

La pantalla anticolisión de aves MF002 es un sistema diseñado para impedir la colisión de aves en vuelo con los trenes que circulan por las vías.

Su campo de aplicación es específico para su instalación en pasos superiores de las líneas de nueva construcción o en las existentes de FFCC o L.A.V.

Reference:
Weight:
Documentation:
Availability: Consult


Share

Features

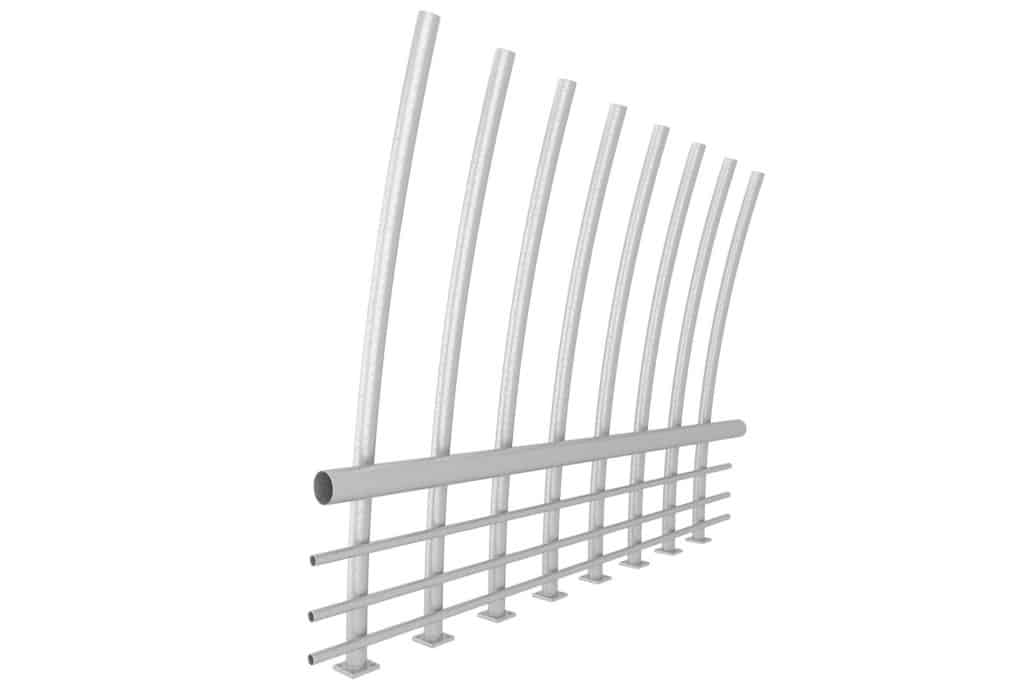

  • Modular metal structure comprising curved vertical and straight horizontal tubular elements.
  • Dovetail modules ensure continuity. Expansion joints are included in the design.
  • Special construction for sections on bends and curves (using a polygon) and on slopes.
  • Possibility of producing any module length.


Installation

  • Structure attachment by welding to the plate previously embedded into the concrete.
  • Structure attachment using a base plate secured with mechanical or chemical bolts in accordance with Standard EN 85-239-91 “Railings. Anchorage features, supply and installation conditions”.

Calculation note on request.


Surface treatment

GALVANISED: Hot dip galvanising anti-corrosion treatment according to EN 1461.

POWDER COATED: Protection using polyester powder coating, applying the QUALISTEELCOAT process based on Standard EN12944 according to the RAL colour requested.

DUPLEX SYSTEM: Hot dip galvanising + powder coating
Powder coated in ADIF corporate colour.
